Description
- 1/2.7" 2MP PS CMOS Image Sensor (6.858 centimeters)
- 1080P: Max. 25 fps , 720P: Max. 30 fps , D1: Max. 8 fps
- H.265, H.264, MJPEG Triple-stream Encoding
- DWDR, Day/Night(ICR), 2D/3D-DNR, ROI, AWB, AGC, BLC, HLC
- 3.6mm lens (6mm Optional)
- Array Range of 30 Mtrs, IP66, PoE
- Supports Instastream technology, save diskspace and bandwidth upto 70%
- Mobile Software: Android, iOS
- CMS Software: IVMS
Specs
| Image Sensor | 1/2.7" 2MP PS CMOS Image Sensor (6.858 centimeters) |
| Minimum Illumination | Colour: 0.02 Lux (F1.8, AGC ON) 0 Lux with IR on |

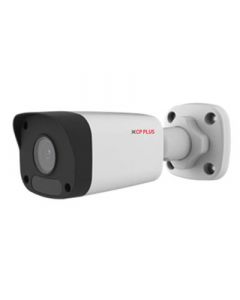

| BodyType | Bullet |
| Shutter Speed | Auto/Manual, 1/6~1/100000 s |
| White Balance | Auto/Manual |
| Lens | 3.6mm Lens (6mm Optional) |
| Video Compression | H.265, H.264, MJPEG |
| AGC Control | Auto/Manual |
| S/N Ratio | >52dB |
| Back Light Comp. | Auto/ DWDR |
| Frame Rate | 1080P (1920 x 1080): Max. 25 fps , 720P (1280 x 720): Max. 30 fps , D1 (720 x 576): Max. 8 fps |
| Video Streaming | Triple |
| Resolution | 1920×1080 |
| Motion Detection | Up to 2 areas |
| Privacy Mask | Up to 8 areas |
| ICR | IR-cut filter with auto switch (ICR) |
| ROI | supports |
| Protocol | L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, ONVIF, API |
| IR Range | Array Range of 30 Mtr. |
| Operating Temperature | -35°C ~ +60°C (-31°F ~ 140°F) |
| Humidity | <95% RH(non-condensing) |
| Power Source | 12 V DC, or PoE (IEEE802.3 af) |
| Power Consumption | Max 5.0 W |
| Weatherproof Standard | IP66 |
| Dimension | 162.9 x 62.4 x 62.7 mm (6.4” x 2.5” x 2.5”) |
| Weight | 0.25 kg |
